Bottle, can & PartyKEG Periphery
Our PartyKEG Capper ADV
ADV – Fully automatic PartyKEG capper

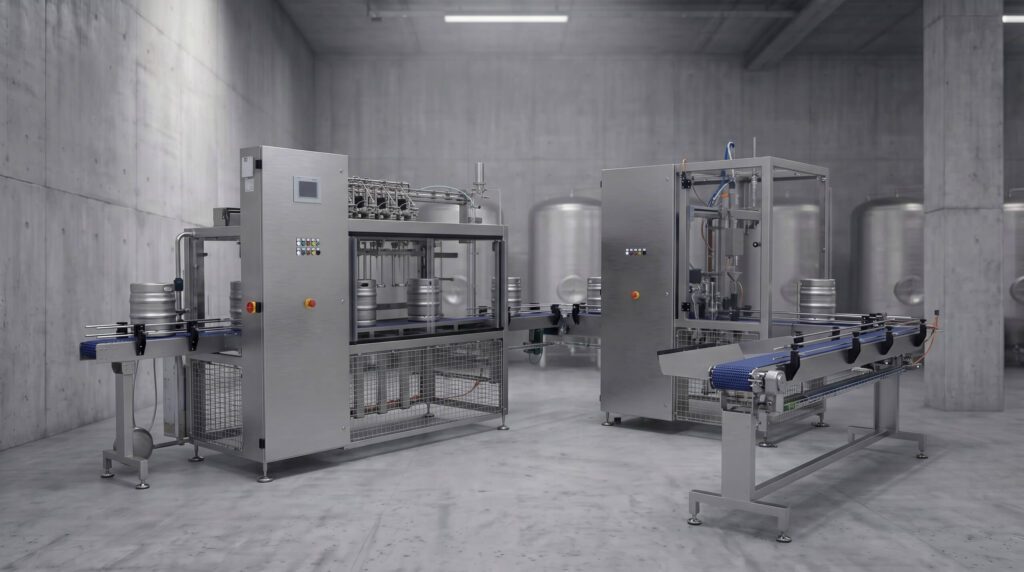

The ADV is a fully automatic capper for 3.1- and 5-litre PartyKEGs. With a capacity of up to 350 PartyKEGs per hour, the system automatically feeds and seals the lids. Sterile hot-water injection, continuous cleaning of the capping head and an automatic CIP programme ensure hygienic and reproducible capping processes.
Features
- Capacity up to 350 cans/h
- for 5 l cans (Party-KEG)
- Vibratory sorting bowl and linear conveyor for automatic feeding of the closures
- automatic foaming via sterile water jet
- low oxygen uptake of the beer
- Continuous cleaning of the capping head
Machine
- completely made of stainless steel (material 1.4301)
- Plastic chain conveyor with stopper
- Linear conveyor with pneumatic singulator and light barrier monitoring for closures
- Linear slide with double cylinder for capper positioning
- Foamer with heating cartridge, temperature sensor, dry-run protection and electric precision injection nozzle made of stainless steel
- Capping head with vacuum holder and position monitoring
- Swing doors at the front and rear made of acrylic glass
- Connection for CIP cleaning via the brewery-side CIP system
- automatic CIP programme
Control
- Siemens PLC control (S7-300)
- Touch panel as display and operating unit
- Festo valve terminal with filter regulator and main air switch
- Control and regulating devices with soft start for linear conveyor and sorting bowl
Dimensions
- Height: 2000 mm
- Width: 1250/2000 mm
- Depth: 1050/1350 mm
- Weight: approx. 500 kg
Optional equipment
- Siemens colour camera for monitoring the foaming process
- Refill hopper for sorting bowl
We would be happy to discuss your project with you.
