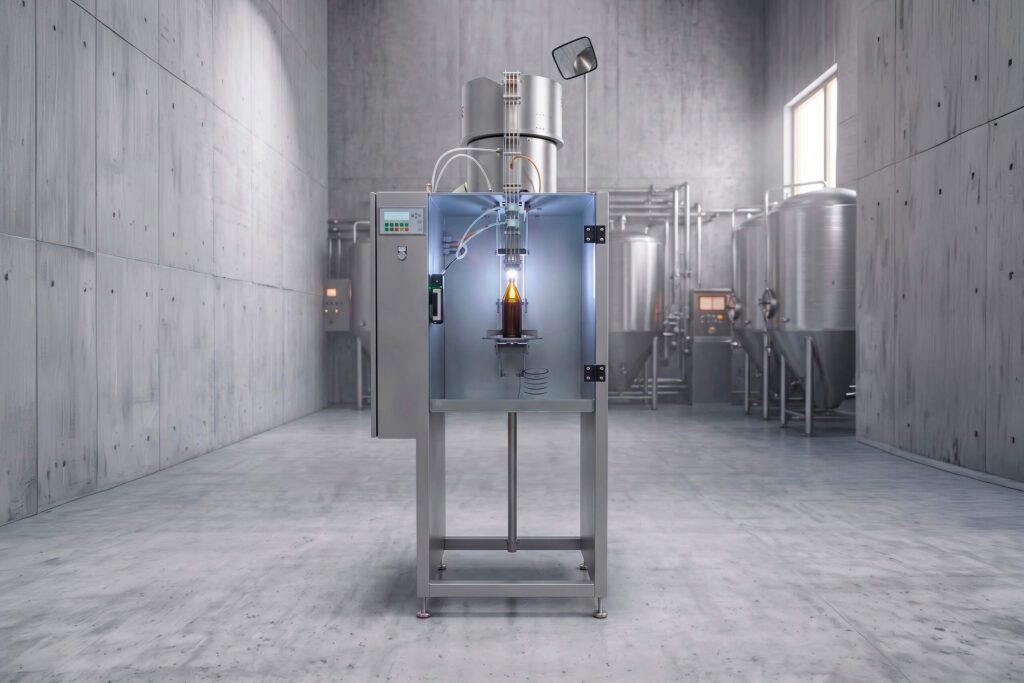

HKK – Fully Automatic Crown Capper
The HKK is a fully automatic crown corker for bottles with 26 mm and optionally 29 mm crown corks. With a capacity of up to 900 bottles per hour, the system automatically caps bottles. Hot water injection for foaming over before capping reduces oxygen pickup and contributes to consistently high beer quality. The stainless steel capping head is CIP-capable and integrated into the filler’s cleaning process.
Features
- Capacity up to 900 bottles/hour
- for all bottles and crown corks
- Stainless steel vibratory sorting bowl for automatic feeding of crown corks
- automatic foaming over by means of pulsating hot water injection into the bottle
- low oxygen pickup of the beer
- Capping head completely made of stainless steel and CIP-capable
Machine
- completely made of stainless steel (material 1.4301)
- usable for crown corks ø26mm and optionally for ø29mm
- V2a vibratory sorting bowl for ø26 & ø29mm
- Changeover time from ø26 to ø29, approx. 1 min
- Foaming unit with heating cartridge, temperature sensor, dry-run protection and electrical precision injection nozzle made of stainless steel
- Height adjustment by electric motor
- Swivel door with ESG
- integrated into the filler’s cleaning process
- low oxygen pickup of the beer
- all times and parameters adjustable
- Check if crown cork is present
- Hot water injection also usable for swing-top bottles
- During CIP, the capping head is rinsed from the inside out with the cleaning agent, ensuring optimal removal of foam residues
Control
- Siemens PLC control
- Touch panel as display and operating device
- Festo valve manifold with filter regulator and main air switch
- Control and regulating devices with soft start for linear conveyor and sorting bowl
We would be happy to discuss your project with you.
