Bottle, can & PartyKEG Periphery
Our PartyKEG Seamer PDV

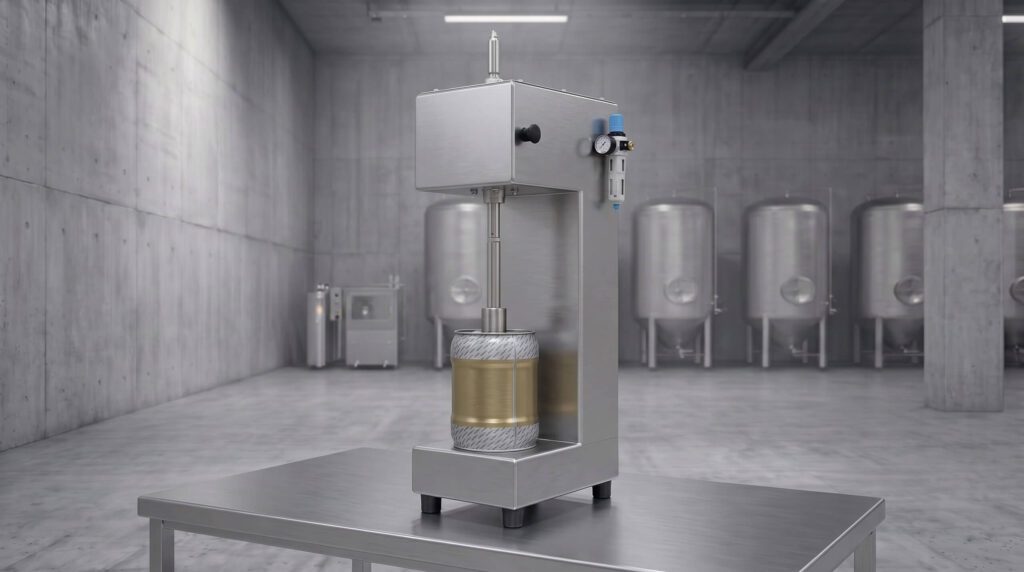

PDV – Pneumatic PartyKEG Seamer
The PDV is a pneumatic manual seamer for 3.1 and 5-liter PartyKEGs. With a capacity of up to 150 PartyKEGs per hour, the machine is suitable for smaller filling volumes. The two-stage seaming head, an integrated pressure regulator, and two-hand operation ensure a safe and reliable seaming process. Available as a table or wall-mounted model, the seamer can be used flexibly.
Features
- Capacity up to 150 cans/h
- for 5l cans (Party-KEG)
- table or wall-mounted model
- for compressed air operation
Machine
- completely made of stainless steel (material 1.4301 / AISI 304)
- robust design
- two-stage, spring-controlled seaming head
- centering plate for can
- maintenance-free pneumatic cylinder
- built-in pressure regulator for adjusting the contact or pressing pressure
- four height-adjustable feet
- two-hand operation
Dimensions
- Height: 770 mm
- Width: 210 mm
- Depth: 360 mm
- Weight: 20 kg
- Connection: Air connection coupling NW 7.2
- Consumption: 90 l/h
Optional Equipment
- Wall bracket
We would be happy to discuss your project with you.
