Semi-automatic KEG systems
Our MiniKEG Duo

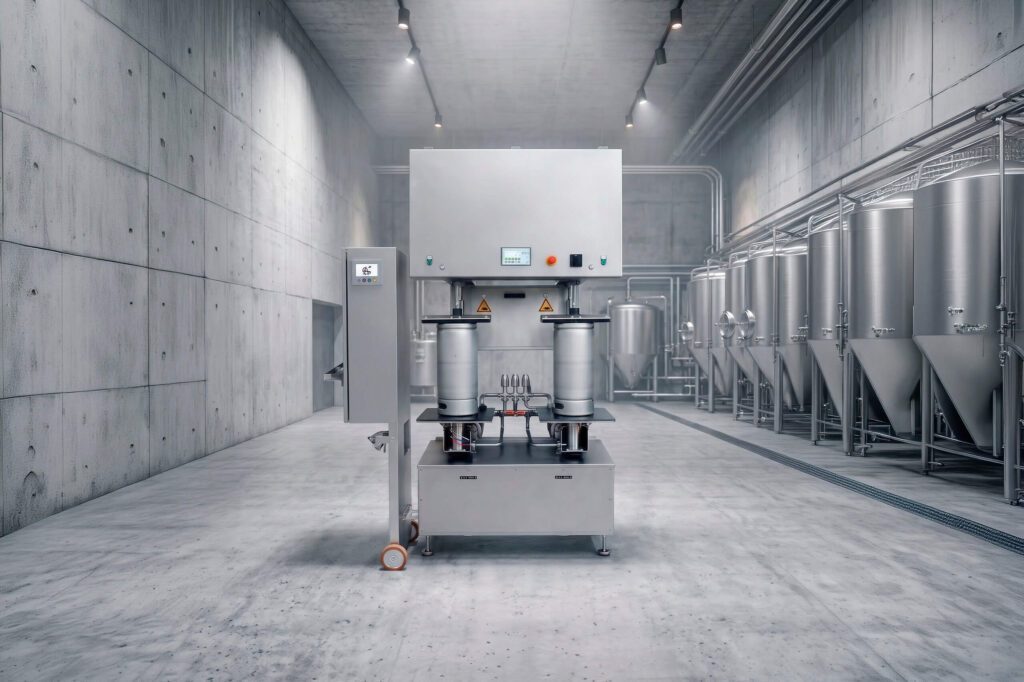

MiniKEG Duo – Semi-automatic KEG cleaning system
The MiniKEG Duo is a semi-automatic KEG cleaning system for internal cleaning and sterilization of standard KEGs. With a capacity of up to 50 KEGs per hour and two low-maintenance cleaning heads, it is suitable for higher cleaning performance in breweries. The system is designed for all standard KEGs and fitting systems and ensures reliable, reproducible cleaning processes.
Features
- Capacity 50 KEG/h
- for KEG internal cleaning and sterilization
- for all standard KEGs
- for all standard fitting systems
- interval cleaning of keg wall and fitting
- components exclusively from renowned manufacturers
Machine
- completely made of stainless steel (min. 1.4301)
- one cleaning agent container
- Control cabinet completely made of stainless steel
- two low-maintenance cleaning heads with fixed piping, no electronics in wet area
- control devices for keg valve open
- keg pressing from above with pneumatic cylinder and movable, dampened plates
- spring-loaded work tables with keg stops
- pneumatic stainless steel piston rod valve with optical position indicator
- flow monitoring by adjustable pressure switch with optical indicator
- return flow monitoring by vibrating fork probe with optical indicator
Container
- integrated container, 80 liters
- heating coil for steam operation, with control valve and condensate trap
- pump 1.1 kW, capacity 5 m3/h / 2.5 bar with silicon carbide/EPDM shaft seal specially designed for caustic and acid operation
- electronic dry-run protection for pump
- return line with air separation pipe
Control
- Siemens PLC control
- Display and control unit
- digital text display for step indication
- digital temperature controller for container
- two cleaning programs
- all control elements on control cabinet front
- Festo multipole pneumatic valve terminal
Options
- second cleaning container
- insulated cleaning container(s)
- counter-current rinsing for fitting
- conversion kit for second fitting system
We would be happy to discuss your project with you.
