Semi-automatic KEG systems
Our KEG Washer KRTDuo

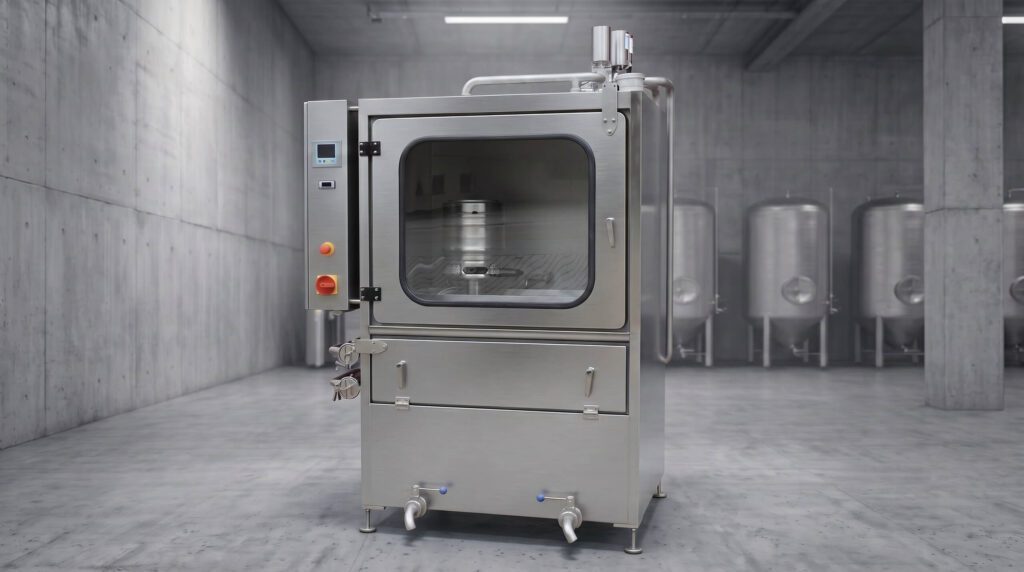

KRT Duo – Semi-automatic KEG and bottle cleaning
The KRT Duo is the more powerful version of the KRT and cleans KEGs and bottles inside and outside in a semi-automatic cleaning cabin. With a capacity of up to 30 KEGs or 560 bottles per hour, it is suitable for higher cleaning performance with the same operation and identical range of functions. CO₂ pre-pressure, two cleaning programs and Siemens PLC control ensure reproducible cleaning processes.
Features
- Capacity: 15 / 30 kegs/h
- 560 btl/h (0.5l btl.) 60 spray nozzles
- 420 btl/h (1.0l btl.) 48 spray nozzles
- 240 btl/h (2.0l btl.) 24 spray nozzles
- for KEGs and bottles
- for internal and external cleaning
- for all standard fitting systems
- Interval cleaning of keg wall and fitting
- Front model with one-hand start
- KEG with CO₂ pre-pressure
- with KEG residual pressure control
Machine
- completely made of stainless steel (material 1.4301)
- two cleaning agent tanks
- Control cabinet completely made of stainless steel
- Front door with safety glass
- rotating wash arms top and bottom for external cleaning
- deactivatable caustic external cleaning
- Flow monitoring by pressure switch
- pneumatic piston rod valves with optical position indicator
- Sterilization for kegs
- Control device for keg valve open
Tanks
- Integrated tanks
- with 2 x sieve insert for external cleaning
- Electric immersion heaters 2×6 kW
- Pump 2.2 kW for mixed water and caustic
- Dry-run protection for pumps
Control
- Siemens PLC control
- 3.7″ touchpanel – monochrome, for display and settings
- freely programmable PLC control
- digital temperature controller for tanks
- two cleaning programs
- all operating elements on the front of the unit
- Festo multipole pneumatic valve terminal
- thermal motor protection for pump
Options
- Insert for KEGs or bottles
- Steam heating for tanks
- Disinfection with steam
- Disinfection with hydrogen peroxide
We would be happy to discuss your project with you.
