Semi-automatic KEG systems
Our KEG-Cleaner KRT

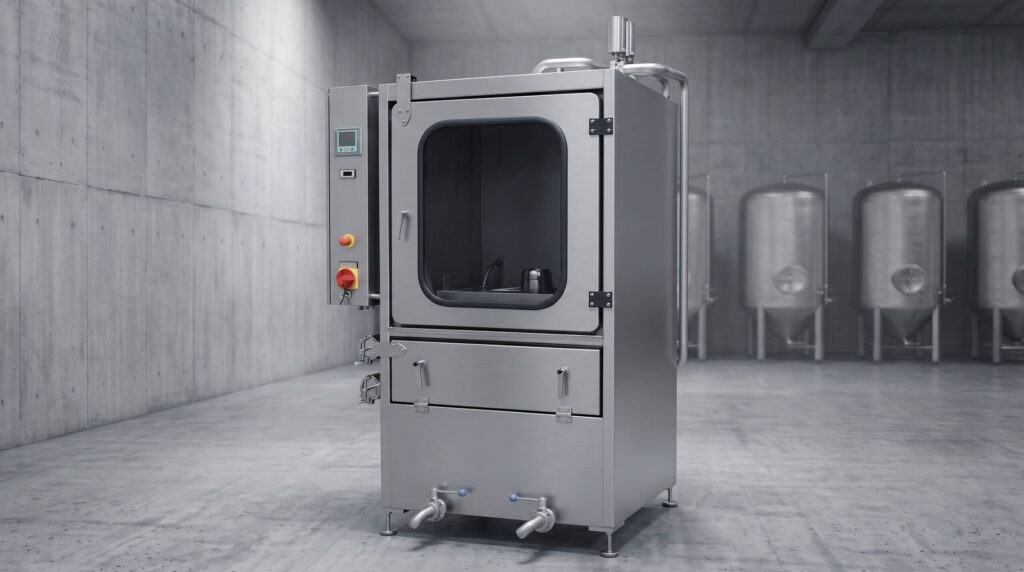

KRT – Semi-automatic KEG and bottle cleaning
The KRT is a semi-automatic cleaning cabinet for KEGs and bottles. It performs the internal and external cleaning of KEGs and standard bottles, achieving a capacity of up to 15 KEGs or 360 bottles per hour. Rotating wash arms, CO₂ pre-pressurization, and two cleaning programs ensure reliable and reproducible cleaning results for various container types.
Features
- Capacity: 15 KEG/h
- 360 bottles/h (0.5l bottles) 36 spray nozzles
- 320 bottles/h (1.0l bottles) 32 spray nozzles
- 120 bottles/h (2.0l bottles) 12 spray nozzles
- for KEGs and bottles
- for internal and external cleaning
- for all standard fitting systems
- Interval cleaning of barrel wall and fitting
- Front model with one-hand start
- KEG with CO₂ pre-pressurization
- with KEG residual pressure control
Machine
- made entirely of stainless steel (material 1.4301)
- two detergent tanks
- Control cabinet completely made of stainless steel
- Front door with safety glass
- rotating wash arms top and bottom for external cleaning
- deactivatable caustic external cleaning
- flow monitoring via pressure switch
- pneumatic piston rod valves with optical position indicator
- Sterilization for KEG
- Control device for open barrel valve
Tanks
- Integrated tanks
- with 2 x sieve inserts for external cleaning
- Electric screw-in heaters 2×6 kW
- Pump 2.2 kW for mixed water and caustic, with silicon carbide/EPDM shaft seals
- Dry-running protection for pumps
Control
- Siemens PLC control
- 3.7” Touchpanel – monochrome, for display and settings
- freely programmable PLC control
- digital temperature controller for tanks
- two cleaning programs
- all controls on the front of the unit
- Festo multipole pneumatic valve terminal
- thermal motor protection for pump
Option
- Insert for KEG or bottles
- Steam heating for tanks
- Disinfection with steam
- Disinfection with hydrogen peroxide
We would be happy to discuss your project with you.
