Semi-automatic KEG systems
Our KombiKEG Duo

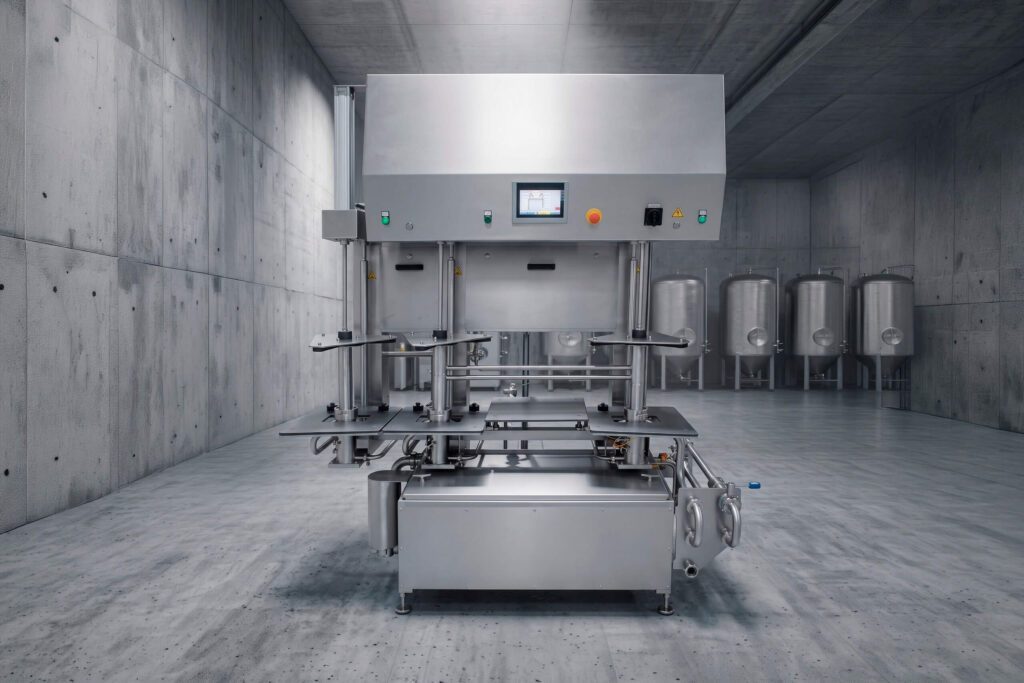

KombiKEG Duo – Semi-automatic KEG filling and cleaning system
The KombiKEG Duo is the high-performance version of the KombiKEG, combining internal cleaning, sterilization, and KEG filling in a semi-automatic system. With a capacity of up to 45 KEGs per hour, two cleaning heads, a sterilization station, and differential pressure control, it is suitable for higher throughputs with low oxygen pickup and minimal beer loss.
Features
- Capacity 45 Kegs/h
- for internal cleaning, sterilization, and filling
- for all KEGs and one-way kegs (including those with inlays)
- for all standard fitting systems
- Interval cleaning of keg and fitting
- low oxygen pickup during filling
- low beer loss during purging
Machine
- completely made of stainless steel (min. 1.4301)
- one insulated detergent tank
- Control cabinet completely made of stainless steel
- 2x cleaning heads, 1x sterilization station, and one filling head with differential pressure control; two exhaust valves for optimal filling
- Work tables with keg stops
- Control devices for “keg valve open” status
- Supply monitoring with pressure switch (LED pressure display) and return monitoring via probe
- pneumatic V2A stainless steel piston rod valves
- Screw-on panel on the front of the machine
- no electrical components in the wet area
Tank
- integrated tank, 175 liters
- Heating coil for steam operation, with control valve and steam trap
- 1.1 kW pump
- Dry-run protection for pump
- Return line with air separator pipe
Control
- Siemens PLC control
- Color touch panel for display and settings
- Tank temperature control via PLC
- Differential pressure control via PLC (filling)
- two cleaning programs for kegs
- two cleaning programs for CIP
- Festo multipole pneumatic valve terminal
Options
- second cleaning tank
- MID flow meter for filling
- Counter-current flushing for fitting
We would be happy to discuss your project with you.
