Bottle cleaner
Our H14 Bottle Washers

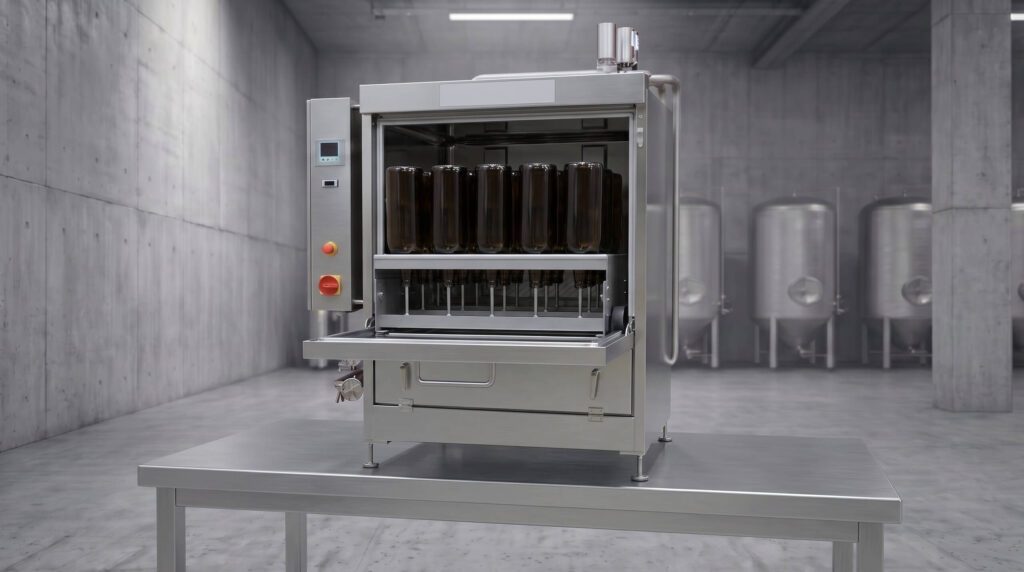

H14 – Semi-automatic bottle washer
The H14 is a semi-automatic bottle washer for the internal and external cleaning of standard commercial bottles up to 320 mm in height. Depending on the bottle size, up to 25 spray points and 6, 11, or 17 cleaning cycles per hour are available. Three cleaning programs, automatic dosing of detergent and rinse aid, and an integrated hot water boiler ensure reproducible cleaning results.
Features
- Performance: 6/11/17 cleaning cycles/h
- 25 spray points for bottle ø70 mm (0.5 l)
- 16 spray points for bottle ø85 mm
- 9 spray points for bottle ø140 mm (2 l)
- 8 spray points for bottle ø160 mm
- For internal and external bottle cleaning
- For all standard commercial bottles
- Maximum bottle height = 320 mm
- Front-loading model with pull-out insert
Machine
- Completely made of stainless steel (material 1.4301)
- Integrated tank, approx. 10.8 liters
- External tank heating
- Integrated hot water boiler, approx. 8 liters
- Automatic redosing of detergent directly into the tank, adjustable dosage
- Automatic redosing, adjustable dosage
- Permanent lye cleaning via a removable screen filter insert
- Cleaning insert on rollers with sliding coupling
- Peristaltic pumps for detergent and rinse aid
- Three cleaning programs
- Rotating wash arms with spray nozzles for external bottle cleaning
- Double-walled, insulated door
- Cleaning times and temperatures easily adjustable
- Error display with error code
- Safety switch on the front door
- One-handed operation
Options
- With built-in water softening
- With steam rinsing
- With mobile base frame (including drip tray for detergent canisters)
Cleaning Program
- Main wash with lye at 60°C from the tank
- Draining
- Final rinse with hot water at 85°C
- Draining
- End
We would be happy to discuss your project with you.
