Semi-automatic KEG systems
Our MiniKEG

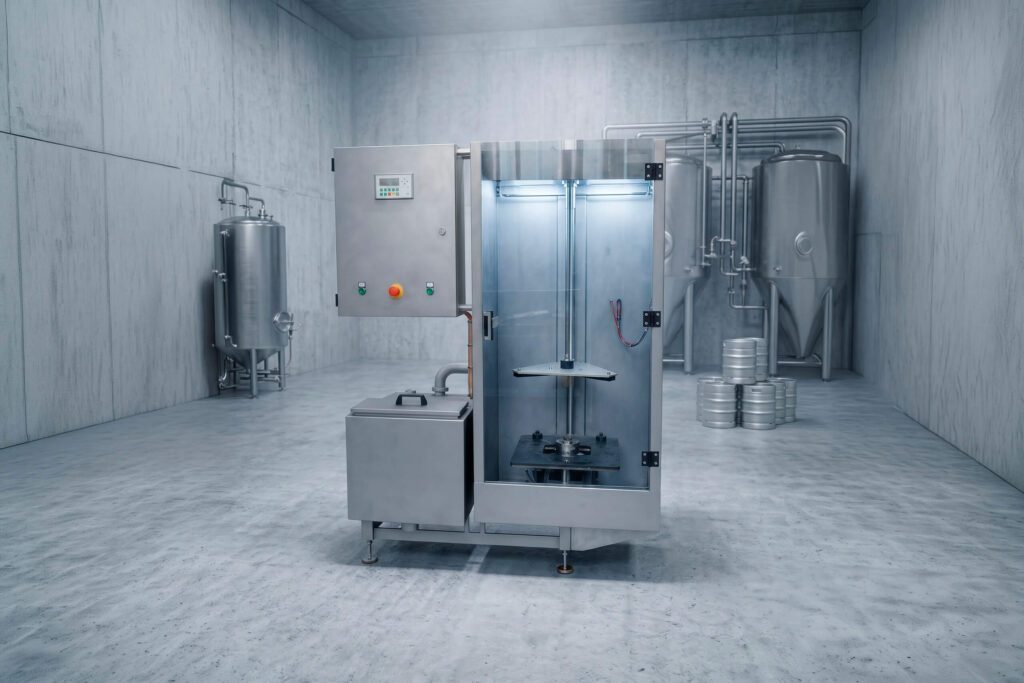

MiniKEG – Semi-automatic KEG cleaning system
The MiniKEG is a semi-automatic KEG cleaning system for internal cleaning and sterilization of standard commercial KEGs. With a capacity of up to 30 KEGs per hour, it is ideal for reliable cleaning processes in breweries. The system features a low-maintenance cleaning head with fixed piping and is designed for all common KEGs and fitting systems.
Features
- Capacity 30 kegs/h
- For internal KEG cleaning and sterilization
- CO2 flushing and counter-pressurizing
- For all standard commercial KEGs
- For all standard commercial fitting systems
- Interval cleaning of keg wall and fitting
- Components exclusively from renowned manufacturers
Machine
- completely made of stainless steel (min. 1.4301)
- One insulated detergent tank
- Control cabinet completely made of stainless steel
- Low-maintenance cleaning head with fixed piping, no electronics in the wet area
- Control device for open keg valve
- Keg pressing from above with pneumatic cylinder and movable, cushioned plate
- Spring-loaded work table with keg stops
- Pneumatic stainless steel piston rod valves with optical position indicator
- Flow monitoring via adjustable pressure switch with LED pressure display
- Return monitoring via probe with optical indicator
Tank
- Integrated tank, 80 liters
- Insulated design
- Heating coil for steam operation
- 1.1 kW pump with shaft seal specifically for caustic and acid operation
- Electronic dry-run protection for pump
- Return line with air separator pipe
Control
- Siemens PLC control
- Display and control unit
- Digital text display for step indication
- Digital temperature controller for tank
- Two cleaning programs (norm./intens.)
- All control elements on the control box front
- Festo multipole pneumatic valve terminal
- Fault message display
Options
- Mixed water tank
- Second cleaning tank
- Counter-current flushing for fitting
- Conversion kit for second fitting system
We would be happy to discuss your project with you.
