Semi-automatic KEG systems
Our KombiKEG

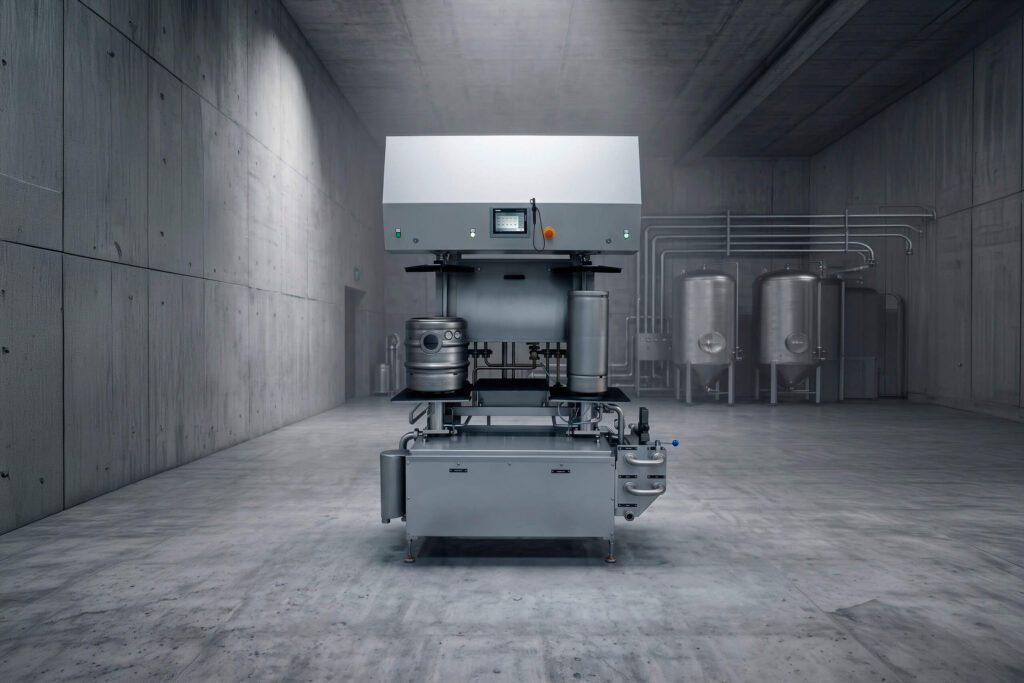

KombiKEG – Semi-automatic KEG Cleaning and Filling System
The KombiKEG is a semi-automatic KEG filling and cleaning system for the internal cleaning, sterilization, and filling of stainless steel and disposable KEGs. With a capacity of up to 30 KEGs per hour, the system operates with differential pressure control and a separate sterilization station. Low oxygen pickup and minimal beer losses ensure a product-friendly filling process.
Features
- Capacity 30 Keg/h
- for internal cleaning, sterilization filling
- for all KEGs and disposables (even with inlay)
- for all standard fitting systems
- Interval cleaning of barrel and fitting
- low oxygen pickup
- low beer losses
Machine
- completely made of stainless steel (min. 1.4301)
- one insulated detergent tank
- Control cabinet completely made of stainless steel
- one cleaning head, one sterilization station, and one filling head with differential pressure control
- two exhaust valves for optimal filling
- work tables with barrel stops
- control devices for open barrel valve
- flow monitoring with pressure switch (LED pressure display) and return flow monitoring via probe
- pneumatic V2a piston rod valves
- Screw-on panel on the front of the machine
- no electrical components in wet areas
Tank
- Insulated integrated tank, 175 liters
- Heating coil for steam operation, with control valve and condensate trap
- Pump 1.1KW
- Dry-running protection for pump
- Return line with air separator tube
Control
- Siemens PLC control
- Touch panel – color, for display and settings
- Tank temperature control via PLC
- Differential pressure control via PLC (filling)
- two cleaning programs for KEG
- two cleaning programs for CIP
- Festo multipole pneumatic valve terminal
Options
- second cleaning tank
- IDM flow meter for filling
- Counter-current rinsing for fitting
We would be happy to discuss your project with you.
