Fully automatic KEG systems
Our KEGmatic (integrated)

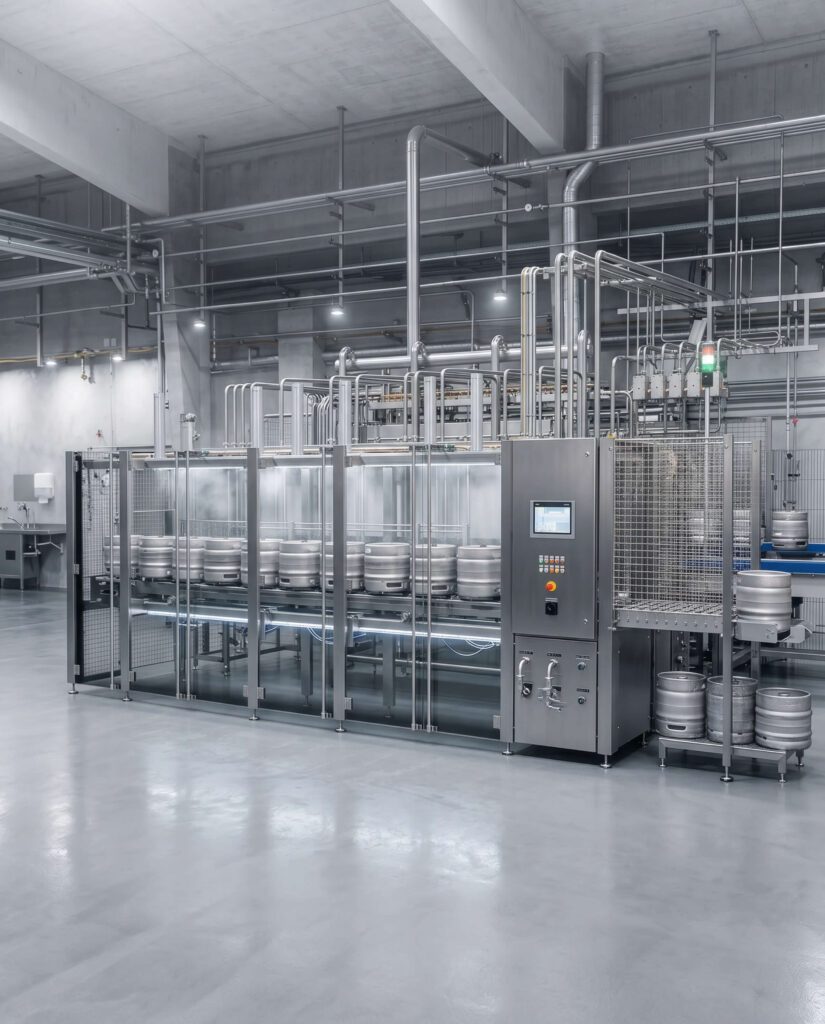

KEGmatic – Fully automatic KEG filling and cleaning system
The KEGmatic is a fully automatic KEG filling and cleaning system for the internal cleaning, sterilization, and filling of standard stainless steel and disposable KEGs. With a capacity of 40 to 100 KEGs per hour per line, it is suitable for high throughputs and automated brewing processes. Differential pressure control, fill volume detection via IDM, and foam detection at the filling head ensure precise and product-friendly KEG filling.
Features
- Capacity 40 – 100 KEGs/h per line
- Partial Aseptic Filling Head
- for internal cleaning, sterilization filling
- for all standard KEGs and disposables
- for all standard fitting systems
- Interval cleaning of keg and fitting
- Components from renowned manufacturers
Machine
- completely made of stainless steel (min. 1.4301)
- Foam detection at the filling head
- Cleaning head, one sterilization station and one filling head with differential pressure control
- Fill volume measurement via IDM
- Exhaust valves for optimal filling
- Low-maintenance filling and cleaning head
- Monitoring of keg valve position
- Flow monitoring by pressure switch and return flow monitoring by sensor, both with optical display
- KEG steaming with temperature control
- Modular pneumatic valve actuators
- Keg pressing with pneumatic cylinder
- Low O2 pickup during filling
- Low beer loss from spraying
- Screw-on panel on the front of the machine
- No electrical components in wet areas
Tank
- Integrated detergent tank
- Heating coil for steam operation, with control valve and condensate trap
- Pumps with SiC/EPDM shaft seal
Control
- Siemens PLC control
- Touch panel for display and settings
- Tank temperature control via PLC
- Differential pressure control via PLC
- Cleaning programs for KEGs
- Cleaning program for machine CIP
- Festo multipole pneumatic valve terminal
- Leak test after CIP
Options
- with external cleaner
- KeyKEG (Combi-filling head for all kegs)
- Automatic KEG size detection
We would be happy to discuss your project with you.
