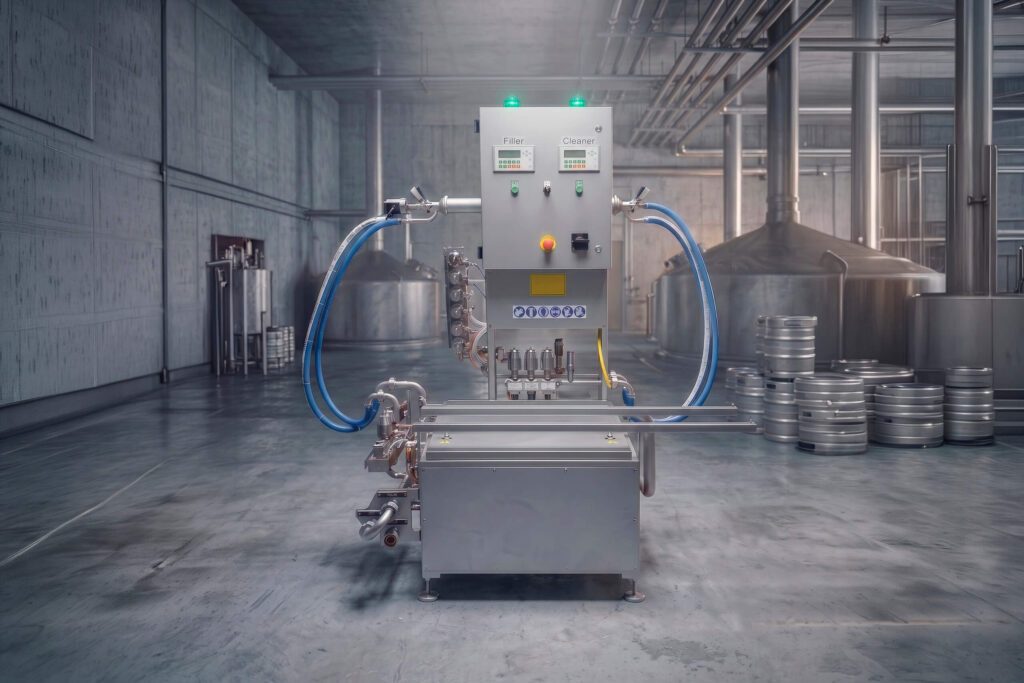

EcoKEG – Semi-automatic KEG cleaning and filling system
The EcoKEG is a semi-automatic KEG filling and cleaning system for internal cleaning and filling of standard commercial KEGs. With a capacity of up to 20 KEGs per hour, filling is carried out via a flow meter. Automatic CO₂ purging, integrated CIP cleaning of the filling head, and the optional filling of single-use KEGs make the system a versatile solution for different KEG systems.
Features
- Capacity 20 KEGs/h
- KEG filling via flow meter
- KEG internal cleaning (keg and spear)
- Automatic CO2 purging & pre-pressurisation
- For all standard commercial KEGs
- for all standard fitting systems
- Interval cleaning of keg wall and fitting
- Optional filling of single-use KEGs
Machine
- completely made of stainless steel (min. 1.4301)
- An insulated cleaning agent tank
- Control cabinet completely made of stainless steel
- Manual keg coupling with a modified stainless steel tapping head
- Hygienic product valve on the tapping head
- Pneumatic stainless steel piston rod valves with optical position indicator
- Feed monitoring via adjustable pressure switch with LED pressure display
- Return monitoring via tuning fork sensor with optical indicator
- Internal CIP cleaning of the filling tapping head
Tank
- Insulated and integrated tank, 80 litres
- Electric screw-in heating element 6.5 kW
- Pump 1.1 kW, capacity 5 m³/h with silicon carbide/EPDM shaft seal specially for caustic and acid operation
- Electronic dry-run protection for pump
- PT100 temperature sensor
- Return line with air separator pipe
- Expansion vessel specially for residual beer
Control
- Siemens PLC control
- Siemens display and operating unit
- Digital temperature controller for tank
- Two cleaning programmes
- All times for cleaning and filling adjustable by the customer
- Automatic pressure equalisation before filling
- Control valves with manual auxiliary actuation
- Thermal motor protection for pump
Options
- Acid cleaning tank
- Counter-current rinsing for caustic
- Tank heating with steam
- Pressure reducer (steam, sterile air, CO2)
(technical changes reserved)
