Semi-automatic KEG systems
Our BabyKEG

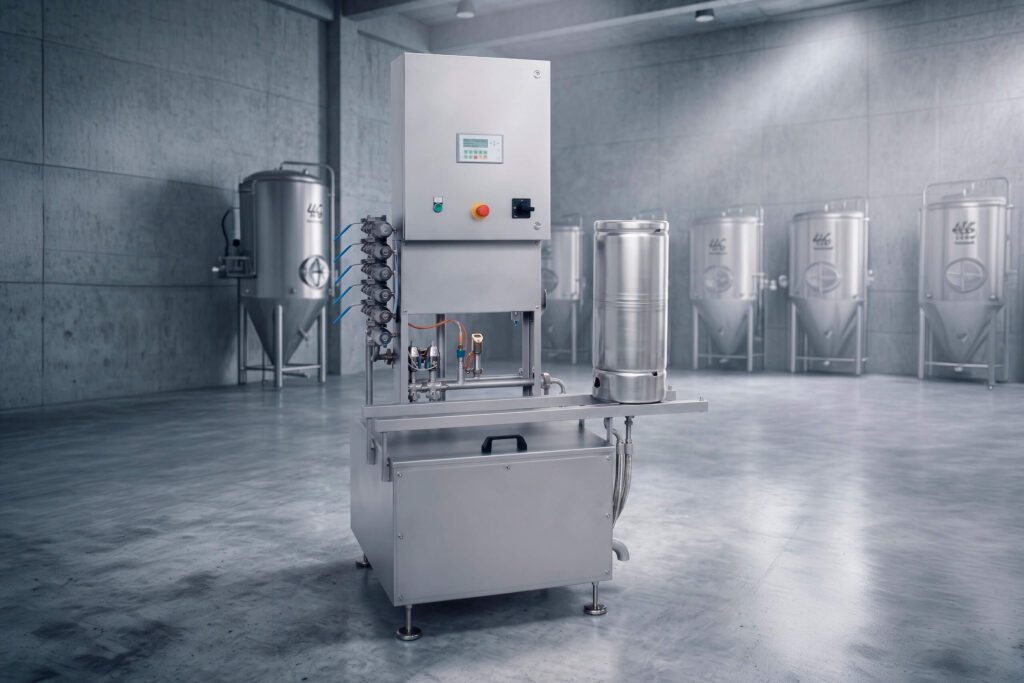

BabyKEG – Semi-Automatic KEG Cleaning System
The BabyKEG is a semi-automatic KEG cleaning system for the internal cleaning of standard KEGs. With a capacity of up to 20 KEGs per hour, it is suitable for reliable cleaning processes in breweries. The system is designed for all common KEGs and fitting systems and impresses with its robust stainless steel construction and Siemens PLC control.
Features
- Capacity 20 KEG/h
- for KEG internal cleaning
- CO2 flushing and pre-pressurization
- for all standard KEGs
- for all standard fitting systems
- interval cleaning of keg wall and fitting
- built-in components exclusively from renowned manufacturers
Machine
- completely made of stainless steel (min. 1.4301)
- one insulated cleaning agent container
- Control cabinet completely made of stainless steel
- manual keg coupling with a modified stainless steel tap head
- pneumatic stainless steel piston rod valves with optical position indicator
- flow monitoring via adjustable pressure switch with LED pressure display
- return flow monitoring via probe with optical display
- holder for tap head
Container
- integrated container, 80 liters
- insulated design
- electric screw-in heating element 6.5 kW
- pump 1.1 kW with shaft seal specially designed for alkaline and acid operation
- electronic dry-run protection for pump
- PT100 temperature sensor
- return line with air separator pipe
Control
- Siemens PLC control
- Display and Control Unit
- digital temperature controller for container
- two cleaning programs
- all control elements on the front
- control valves with manual auxiliary operation
- thermal motor protection for pump
- fault indication display
Options
- mixed water container
- second cleaning container
- countercurrent flushing alkaline
- conversion kit for other fitting systems
- container heating with steam
- pressure reducer (steam, sterile air, CO2)
(subject to technical changes)
