Bottle cleaner
Our KEG Cleaner KRTDuo

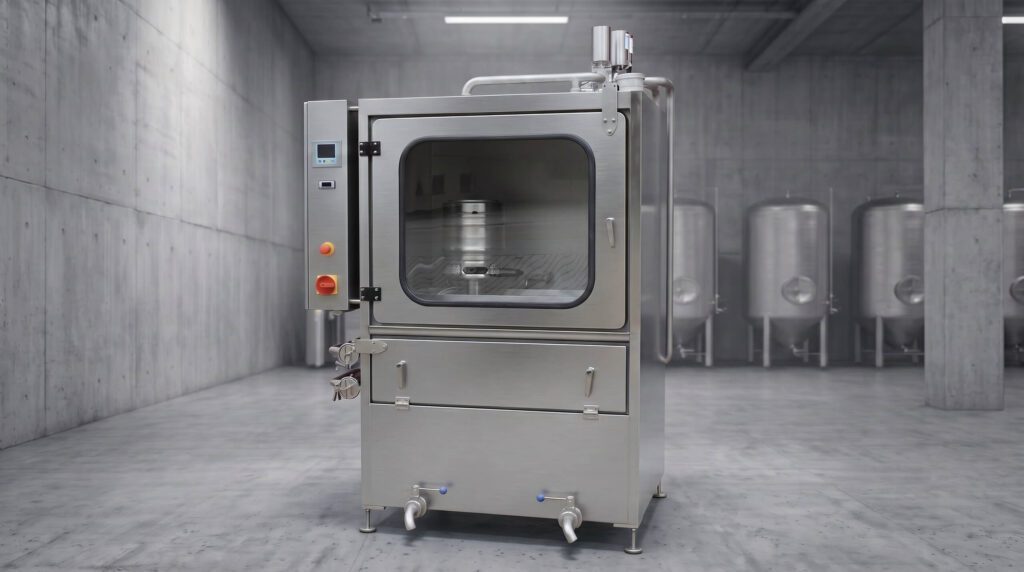

KRT Duo – Semi-automatic cleaning system for KEGs and bottles
The KRT Duo is a semi-automatic cleaning system for KEGs and bottles. With a capacity of up to 30 KEGs or 560 bottles per hour, the system is suitable for higher throughputs. CO₂ pre-pressurization, KEG sterilization and two cleaning programs enable reliable internal and external cleaning of a wide range of containers.
Features
- Capacity: 15 / 30 keg/h
- 560 bph (0.5 l bottles) 60 spray points
- 420 bph (1.0 l bottles) 48 spray points
- 240 bph (2.0 l bottles) 24 spray points
- for KEGs and bottles
- for internal and external cleaning
- for all standard fitting systems
- Interval cleaning of keg wall and fitting
- Front model with one-hand start
- KEG with CO₂ pre-pressurization
- with KEG residual pressure control
Machine
- entirely made of stainless steel (material 1.4301)
- two detergent containers
- Control cabinet completely made of stainless steel
- front door with safety glass
- rotating wash arms at the top and bottom for external cleaning
- alkaline external cleaning can be switched off
- feed monitoring via pressure switch
- pneumatic piston rod valves with optical position indicator
- sterilization for keg
- monitoring device for keg valve open
Tanks
- Integrated tanks
- with 2 x strainer insert for external cleaning
- Electric screw-in heating elements 2×6 kW
- 2.2 kW pump for mixed water and caustic solution
- Dry-run protection for pumps
Control system
- Siemens PLC control
- 3.7″ touch panel – monochrome, for display and settings
- freely programmable PLC control
- digital temperature controller for tanks
- two cleaning programs
- all controls on the front of the unit
- Festo multipole pneumatic valve terminal
- thermal motor protection for pump
Options
- Insert for KEGs or bottles
- Steam heating for tanks
- Disinfection with steam
- Disinfection with hydrogen peroxide
We would be happy to discuss your project with you.
