Semi-automatic bottle, can and PartyKEG fillers
Our FF 2-17

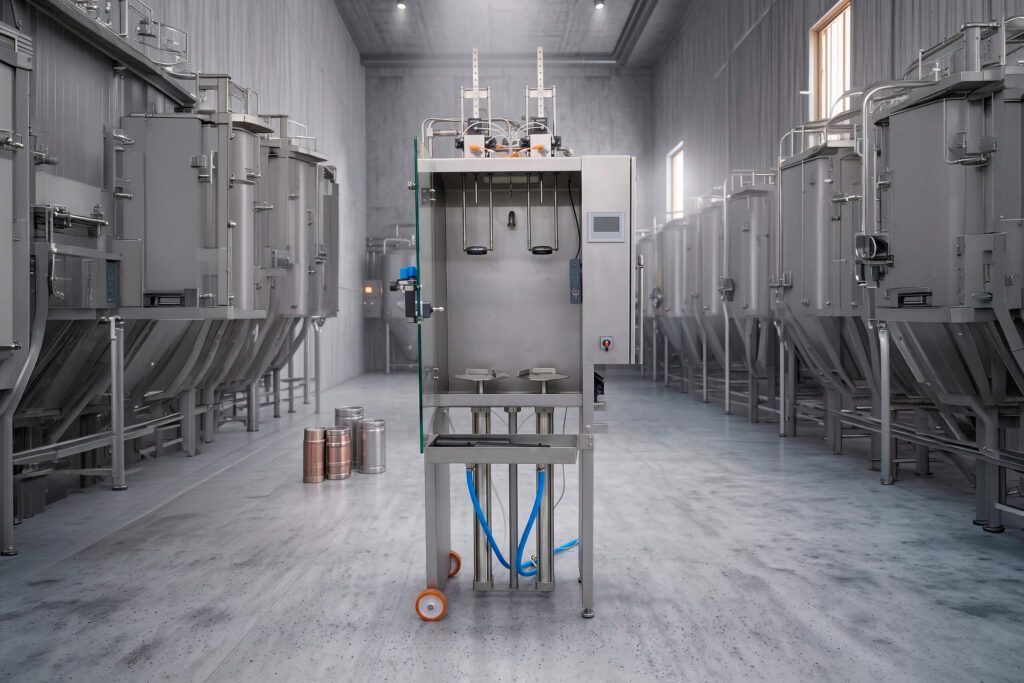

FF 2-17 – Semi-automatic bottle and can filler
The FF 2/17 is a semi-automatic bottle and can filler with two pneumatic filling valves for bottles, cans, and party kegs. With a capacity of up to 240 cans, 200 bottles, or 80 party kegs per hour, the system is suitable for higher filling outputs. Hygienic design, PTFE seals on the filling block, and a Siemens color touch panel support a precise and reproducible filling process.
Features
- Capacity:
- 200 / 240 cans/h (0.25 l cans)
- 160 / 200 bottles/h (0.33 l bottles)
- 140 / 180 bottles/h (0.50 l bottles)
- 120 / 160 bottles/h (0.75 l bottles)
- 60 / 80 party kegs/h (5.0 l PK)
- Bottles and cans from 0.25–3.0 l, including 5.0 l party kegs
- 8 filling quantities and times can be stored
- Maximum container height = 320 mm
- Long-tube filler, exchangeable filling tube
- Automatic filling with flow meter
- CO2 flushing (1x or 2x) before filling
- Very low oxygen pickup
- Simple control system design
- System delivered ready for connection
- Designed according to hygienic design principles
- Only Teflon (PTFE) seals on the filling block
Machine
- Completely made of stainless steel (material 1.4301)
- Mobile stainless steel frame
- Control cabinet completely made of stainless steel
- Two pneumatic filling valves with all valves attached
- Filling valve optimized for maximum cleanability (no solenoid valves)
- Exchangeable filling tube
- Flow meter for precise filling quantity
- Electrically adjustable exhaust air valve for setting the filling speed (0–100%)
- Stainless steel pressure gauge for product pressure
- Bottle neck centering
- Pneumatic cylinder for lifting the bottles
- CO2 pressure regulator
- Pressure regulator for contact pressure
- LED lighting for the filler interior
- Adapter for machine cleaning
Control
- Siemens PLC control
- Siemens color touch panel
- Fully automatic program sequence
- 8 adjustable filling quantities
- All controls on the front of the control box
- Digital text display for step indication
- Machine cleaning program
Options
- MID flow meter, dampable
- Can seamer with hot water injection
We would be happy to discuss your project with you.
